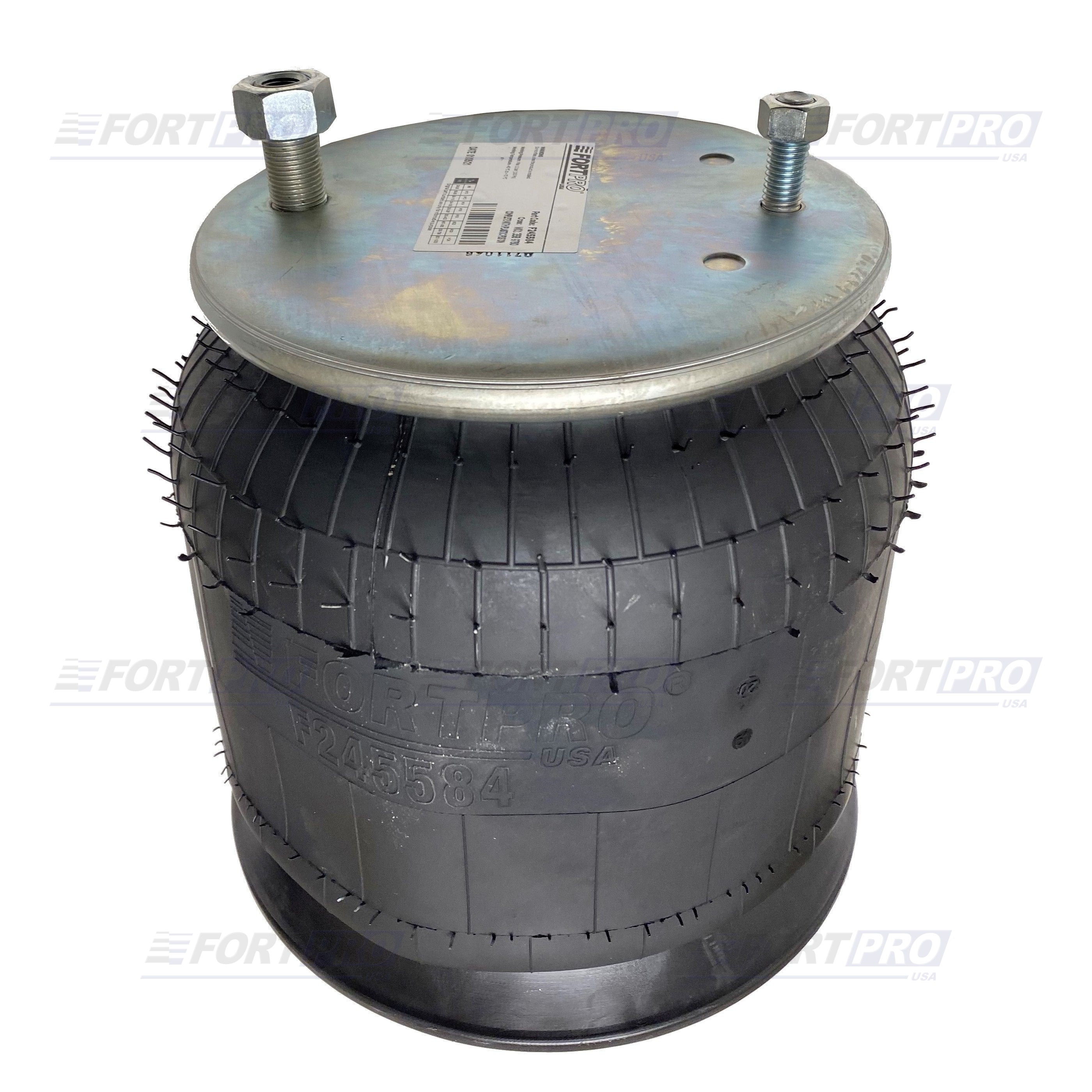

Fortpro F9780 Air Spring A16-18335-001, 1R12-268, 1R12-303

Fortpro SKU: F245584 Specifications: - Product Line: Suspension - Category Name: Air Springs and Bags - Part Type: Rolling Lobe Air Spring - Alternate Part Name: Air Suspension Bag, Reversible Sleeve Air Spring, Air Ride Spring, Rolling Lobe Air Spring, Air Bag Suspension, Pneumatic Spring, Suspension Air Bag - OEM Part Number: W01-358-9780 - Application Type: Semi-Trucks, Heavy Duty Trucks - VMRS Code: 016-008-000 - Material: Fiber reinforced rubber bellows - Air Inlet Inside Thread: 1/4-18 NPTF - Air Inlet Outside Thread: 3/4-16 UNF - Body Diameter: 10.62 in. - Bottom Plate Alignment: Parallel - Bottom Plate Diameter: 10.53 in. - Bottom Plate Stud: 1/2-13 UNC - Mounting Stud Configuration - Bottom: 1 - Mounting Stud Configuration - Top: 2 - Piston Height: 6.89 in. - Piston Material Type: Composite - Top Plate Diameter: 9.00 in. - Top Plate Stud: 1/2-13 UNC - Air Spring Type: 1T Reversible Sleeve - Collapsed Length: 8.60 in. - Extended Length: 23.00 in. - Net Weight: 13.60 lb. - 1613810000, 1613810001, 1613810002, 161381001, 1614377000, 161673000, 1619768000, 1R12186, 1R12189, 1R12303, 1R12603, 3529781, 566CT67473, 6813200017, 6813280001, 9780, A1613668002, A1614004000, A1614004001, A1614377, A1618335000, A1618335001, AB1DF239780, AS9780, EAS9780, FS9780, M3550, MAF9780, W013589780, W013778528, 136922, 1DK23K9780, 1R12-303, 1T15ZR-6, 1T15ZR6, 32303 KPP, 331061, 342303-CPL, 342303CPL, 449781-CPL, 449781CPL, 9 10S-16, 9 10S16, 910S16A382, 910S16P382, 935621, P 382, W01 358 9780
